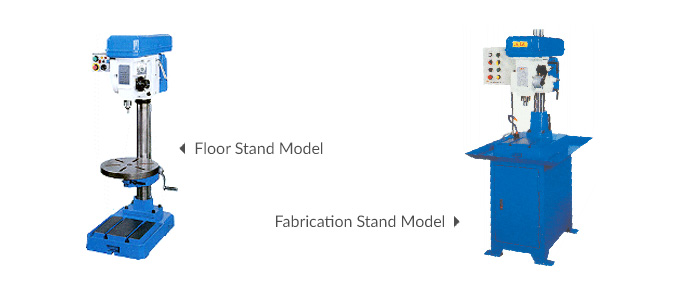

Tapping Machines - Gear Type
2nd Generation - Fast tapping machines, can produce components up-to 25 pcs per minute.
Features under this category
- Rigid Construction Fabricated base Stress relieved and duly scrapped to achieve desired accuracies as per IS standards.
- Tapping cycle (Tap forward cycle - dwell - Tap reverse cycle).
- Spindle drive through v-stepped pulley.
- Inbuilt job counter & tool change counters.
- Inbuilt clamp / declamp cycle for tooling automation.
- 3 Phase, 50Hz, TEFC, F class insulation, Induction Motor with temperature sensors with its controller.
- Automatic tapping is driven by gear pair which provides standard pitch, accurate thread and consistent quality level for tapping.
- Easy replacement of gear pair for different pitches, fitted externally.
- Does not exert extra pressure on component, due to thrust compensation clutch on quill.
- There is no reverse cut or pulling force on component during return stroke of tapping.
- Safety mechanism prevents breakage in case of spindle overload.
- Machines can be equipped with Multi-Spindle Heads for mass production.
Geared Automatic Tapping Machine |
Model |
GT110 |
GT80 |
GT50 |
Maximum Tapping Capacity (S45C) |
M35 |
M16 |
M8 |
Spindle Taper |
MT4 |
MT3 |
JT2 |
Spindle Travel |
60mm |
60mm |
40mm |
Spindle Speed (Optional) |
85-170-240rpm |
155-285-515rpm |
420-760-1340rpm |
Throat (Column to Spindle Centre) |
260mm |
230mm |
180mm |
Table Area |
600X400mm |
500X400mm |
400X300mm |
Column Diameter |
Ø 115mm |
Ø 102mm |
Ø 80mm |
Distance from Spindle To Table |
100-700mm |
100-700mm |
100-700mm |
Motor HP |
3HP |
2HP |
1HP |
Overall Height |
2100mm |
2100mm |
1600mm |
Standard Accessories
- Operation and maintenance manual.
- Spindle motor of reputed brand, F-Class insulation, duly assembled with all drive elements.
- Comprehensive electrical control panels without motor protection device.
- Inbuilt job counter & tool change counters.
- Flexible lighting arrangement.
Optional Accessories
- Tool holders suitable for application.
- Variable frequency Drive for spindle motor for setting speed.
- Coolant system-complete with necessary splash guards etc.
- Component orientation & clamping fixture as per application.
- Machine cladding.
- Centralized lubrication system.
