Drilling Machines - Hydraulic
2nd Generation - Sutaible for production of 50000 to 85000 components per month.
Features under this category
  • Hydraulic Drilling Machines - For mild steel or medium hard materials.
  • Machines suitable for standard drilling, Chamfering, Reaming, Hole Milling, Countersinking etc.
  • Rigid Construction, Fabricated base Stress relieved and duly scrapped to achieve desired accuracies as per IS standards.
  • Spindle is firmly arrested in two P4 Class, preloaded bearings, to sustain max axial thrust & radial loads.
  • Drilling cycle (Rapid forward - feed-dwell-rapid return)
  • Machines available in horizontal as well as vertical axis.
  • Spindle drive through timer belts and inter changeable pulley sets.
  • Hydraulic spindle feed, infinitely variable within the range.
  • Inbuilt clamp / decamp cycle
  • Machines can be equipped with Multi-Spindle Heads for mass production.

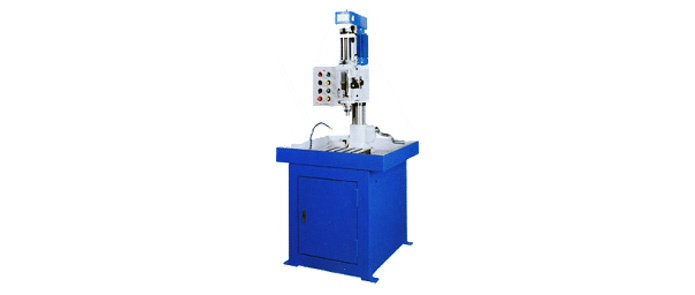

Hydraulic Automatic Drilling Machines
Model  H-7130 H-6150 H-5100 H-570
Max. Drilling Capacity (S45C) Ø 20mm Ø 16mm Ø 10mm Ø 10mm
Spindle Taper MT2 MT2 JT6 JT6
Spindle Travel 130mm 150mm 100mm 70mm
Spindle Speed (Optional) 300-1000rpm 500-2000rpm 500-3000rpm 500-3000rpm
Throat (Column to spindle centre) 230mm 230mm 180mm 180mm
Column Diameter Ø 102mm Ø 102mm Ø 80mm Ø 80mm
Motor HP 2HP 1.5HP  1HP  1HP
Distance from Spindle to table 100-700mm 100-700mm 100-400mm 100-400mm
Hydraulic Pressure 25kg/cm2 20kg/cm2 12kg/cm2 12kg/cm2
Over All Height 2100mm 1800mm 1600mm 1600mm

Hydraulic Automatic Drilling Machines
Model  H-12150 H-9150 H-8130 H-7150
Max. Drilling Capacity (S45C) Ø 50mm Ø 35mm Ø 35mm Ø 25mm
Spindle Taper MT4/NT50 MT4/NT40 MT4/NT40 MT3
Spindle Travel 150mm 150mm 130mm 150mm
Spindle Speed (Optional) 50-1000rpm 300-1000rpm 300-1000rpm 300-1500rpm
Throat (Column to spindle centre) 300mm 260mm 260mm 230mm
Column Diameter Box Type (500x500) Box Type (300x300) Box Type (300x300) Ø 102mm
Motor HP 5HP 3HP 3HP 2HP
Distance from Spindle to table 100-700mm 100-700mm 100-700mm 100-700mm
Hydraulic Pressure 25kg/cm2 25kg/cm2 25kg/cm2 25kg/cm2
Over All Height 2500mm 2500mm 2500mm 2100mm
Standard Accessories
  • Hydraulic Systems duly interfaced with the mother machine.
  • Comprehensive electrical control panels with PLC OR contactor control.
  • All motor of reputed brand, Heavy duty, F Class Insulation, duly assembled on the machine with all drive arrangement.
  • Operation and maintenance manual.
  • Machine lamp arrangement.
  • Job counter & tool change counters.
Optional Accessories
  • Tool holders suitable for application.
  • Coolant system-complete with necessary splash guards etc.
  • Component orientation & clamping fixture as per application.
  • Variable frequency Drive for spindle to for speed variation within the range.
  • Machine cladding.
  • Centralized lubrication system.
