SPM Moduler - Linear Indexing Table

KTK Machines INDIA offers unique and wide range of S.P.M. modules to S.P.M. manufacturer.
Using KTK make modules gives great comfort for machine builders because of its simple construction specifically for assemblies. This enables machine builder to construct the machine with high speed. The machine can focus his concentration towards other assemblies as such fixtures and component proving.

Features under this category

Modular construction for S.P. M. manufacturer
Modules are of wide range and has unique feature of interchangeability.
Modules are simple in assembly and suitable for wide range of various applications.
In both orientation i.e. horizontal OR vertical, the Modules can be mounted easily.
The raw material used for modules while manufacturing are of precise quality grade. Because of that, the modules have long life and consistence performance during operations.
Modules are tested under strict norms.
The complete dimensional drawings in 2D presentation are available.

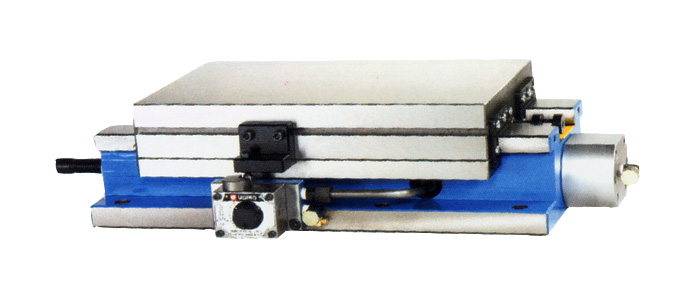

Linear Indexing Slide Table ( Hydraulic )
Model	Slide Base	Slide Saddle	Slide Stroke	Cylinder Diameter	Loaded W.	Weight
ST-120x300	300mm	120x200mm	70mm	40mm	80kg	30kg
ST-120x400	400mm	120x200mm	120mm	40mm	80kg	35kg

Model	Slide Base	Slide Saddle	Slide Stroke	Cylinder Diameter	Loaded W.	Weight
ST-200x400	400mm	200x300mm	100mm	50mm	150kg	55kg
ST-200x1000	1000mm	200x300mm	140mm	50mm	150kg	140kg

Model	Slide Base	Slide Saddle	Slide Stroke	Cylinder Diameter	Loaded W.	Weight
ST-220x420	420mm	220x410mm	100mm	50mm	200kg	65kg
ST-220x570	570mm	220x410mm	150mm	50mm	200kg	75kg
ST-220x670	670mm	220x410mm	200mm	50mm	200kg	80kg

Model	Slide Base	Slide Saddle	Slide Stroke	Cylinder Diameter	Loaded W.	Weight
ST-250x550	550mm	250x420mm	120mm	50mm	300kg	85kg
ST-250x750	750mm	250x420mm	360mm	50mm	300kg	100kg
ST-250x850	850mm	250x420mm	400mm	50mm	300kg	120kg
ST-250x940	940mm	250x420mm	500mm	50mm	300kg	150kg
ST-250x1200	1200mm	250x420mm	600mm	50mm	300kg	180kg

Model	Slide Base	Slide Saddle	Slide Stroke	Cylinder Diameter	Loaded W.	Weight
ST-500x885	885mm	420x600mm	250mm	90mm	1000kg	420kg
ST-500x1200	1200mm	500x600mm	550mm	90mm	1000kg	550kg
