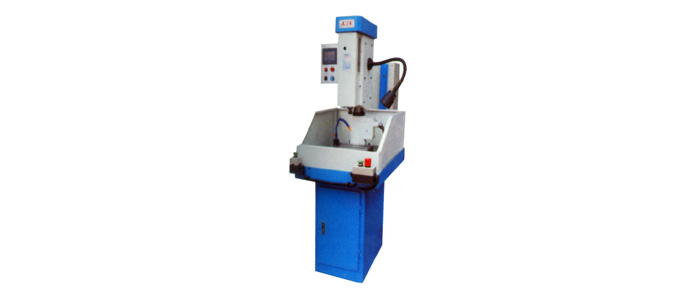

Drilling Machines - Servo - Ball Screw
2nd Generation - Sutaible for production of 75000 to 100000 components per month.
Features under this category
- Single Axis servo control Drilling Machines, for Mild steel and Medium hard materials.
- PLC based (Programable) Drilling Cycle to suit application.
- Machines can also be used for Standard Drilling, Deep hole Drilling, Chamfering, Reaming, Hole milling, operations etc.
- Machines available in horizontal as well as vertical axis.
- Rigid Construction, Fabricated base Stress relieved and duly scrapped to achieve desired accuracies as per IS standards.
- Spindle is firmly arrested in two P4 Class, preloaded bearings to take max axial thrust & radial loads.
- Machines with PLCare flexible and convenient in operations to operating crew.
- Spindle drive through timer belts and inter changeable pulley sets.
- Electro-mechanical Spindle feed, through Ball Screw.
- Inbuilt clamp / decamp cycle for tooling automation.
- Machines can be equipped with variable frequency.
- Machines can be equipped with Multi-Spindle Heads for mass production.
| Ball Screw Servo Automatic Drilling Machines | ||||
| Model | NC-9200 | NC-7200 | NC-6150 | NC-4150 |
| Maximum Drilling Capacity (S45C) | Ø 35mm | Ø 25mm | Ø 16mm | Ø 6mm |
| Spindle Travel | 130mm | 180mm | 130mm | 100mm |
| Spindle Taper | ER-40 / MT4 | ER-32 / MT3 | ER-25 / MT2 | ER-16 |
| Spindle Speed | 200-1500 (Optional) | 500-2000 (Optional) | 833,1650,2500 | 3000,4000,5000 |
| Spindle Motor HP | 3HP | 2HP | 2HP | 0.5HP |
| Servo Motor Power | 1.5KW / 5.8 N-m | 1.5KW / 5.8 N-m | 750W / 2.4 N-m | 400W / 1.3 N-m |
| Throat (Column to Spindle Centre) | 260mm | 230mm | 230mm | 180mm |
| Table Size | 700*500mm | 600*400mm | 500*400mm | 400*300mm |
| Column Diameter | Box Type 500*500mm |
Box Type 300*300mm | Ø 102mm | Ø 80mm |
| Distance From Spindle Base | 100-700mm | 100-700mm | 100-600mm | 100-400mm |
| Overall Height (Approx) | 2500mm | 2100mm | 1800mm | 1600mm |
| Weight (Approx) | 1000kg | 750kg | 380kg | 210kg |
Standard Accessories
- Electro-mechanical Systems duly interfaced with the mother machine.
- Comprehensive electrical PLC based control panel.
- Main spindle motor 3 phases AC induction motor of reputed brand, F Class Insulation, duly assembled on the machine with all drive arrangement.
- Operation and maintenance manual.
- Flexible lighting arrangement.
- Inbuilt job counter & tool change counters.
Optional Accessories
- Tool holders suitable for application.
- Coolant system-complete with necessary splash guards etc.
- Component orientation & clamping fixture as per application.
- Variable frequency Drive for main spindle to set desired speed.
- Machine full cladding.
- Centralized lubrication system, if required.
