SPM Moduler - Adjustalbe Multispindle Heads
Suitable for HSS Type Cutting Tools
Features under this category
The multi spindle heads for drilling and tapping operation are custom build units. Basically the units are manufactured as per specific components OR applications.

Whenever, there is requirement of high production rate of finished components at low cost then, it is recommended to use multi spindle unit. The multi heads with an additional use of indexing tables, linear slides and automatic clamping, facilitate high production of finished component.
  • Optimum use of basic mother machine.
  • Direct saving in man power and labor cost.
  • Direct saving in tooling cost at better process quality.
  • Direct saving in cycle time (Loading/Unloading of component)
  • Enhanced production rate without compromising the quality.
  • Reduced wear and tear of basic machine per drilling or tapping.
Adjustable Standard Multispindle Head (Suitbale for HSS type cutting tools)

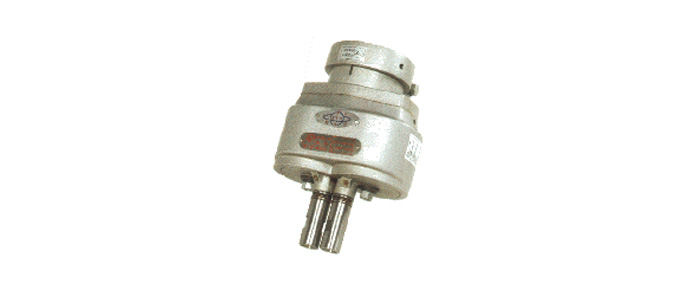

Model Collet Capacity (S45C) Spindle adjust range Spindle No. available
T-76 C - 5 Ø 5mm 12-76mm 2
T-108 C - 6 Ø 6mm 18-108mm 2
T-121 C - 9 Ø 8mm 24-121mm 2
T-121 C - 12 Ø 10mm 26-121mm 2
T-165 C - 12 Ø 12mm 33-165mm 2

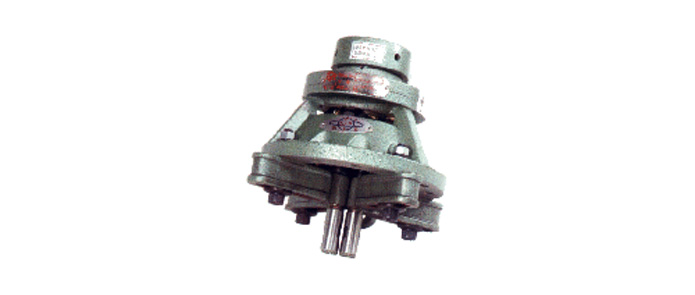

Model Collet Capacity (S45C) Spindle adjust range Spindle No. available
A-116 C - 6 Ø 6mm 18-100mm 2 - 4
A-124 C - 9 Ø 8mm 26-124mm 2 - 4
A-124 C - 12 Ø 10mm 38-124mm 2 - 4

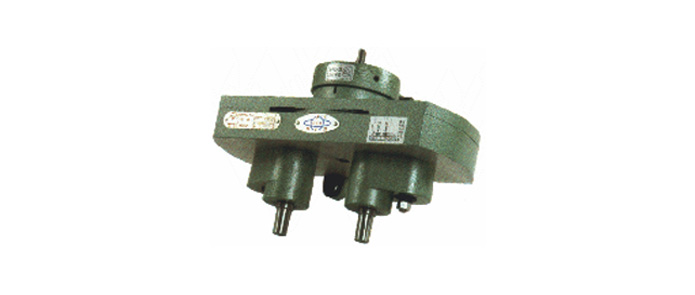

Model Collet Capacity (S45C) Spindle adjust range Spindle No. available
D-176 JT2 9mm 38-176mm 2
D-176 JT6 12mm 46-176mm 2
D-183 JT6 12mm 55-183mm 2
D-252 JT6 12mm 96-252mm 2

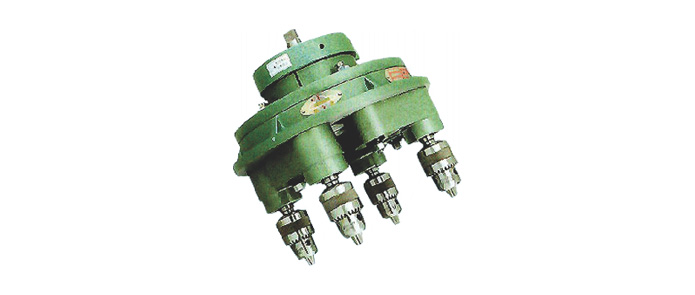

Model Collet Capacity (S45C) Spindle adjust range Spindle No. available
D-192 JT2 9mm 37-177mm 2 - 4
D-240 JT6 12mm 45-240mm 2 - 4
D-262 JT2 9mm 45-262mm 2 - 4
D-315 JT6 12mm 55-315mm 2 - 4
