Spindle Head - Drilling
KTK Machines INDIA offers unique and wide range of S.P.M. modules to S.P.M. manufacturer.
Using KTK make modules gives great comfort for machine builders because of its simple construction specifically for assemblies. This enables machine builder to construct the machine with high speed. The machine can focus his concentration towards other assemblies as such fixtures and component proving.
Features under this category
  • Modular construction for S.P. M. manufacturer
  • Modules are of wide range and has unique feature of interchangeability.
  • Modules are simple in assembly and suitable for wide range of various applications.
  • In both orientation i.e. horizontal OR vertical, the Modules can be mounted easily.
  • The raw material used for modules while manufacturing are of precise quality grade. Because of that, the modules have long life and consistence performance during operations.
  • Modules are tested under strict norms.
  • The complete dimensional drawings in 2D presentation are available.

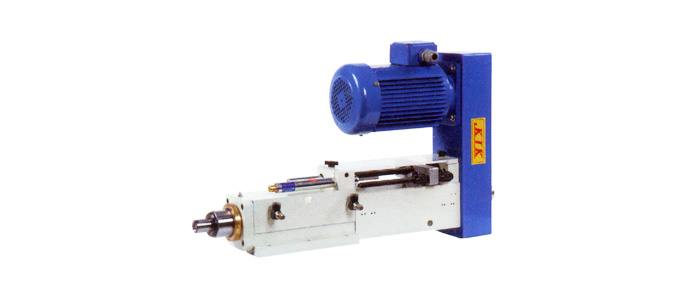

Pneumatic Drilling Spindle Head
Model P-350H P-360H P-570H P5100H P6150H
Capacity (S45C) Ø5mm Ø6mm Ø8mm Ø10mm Ø16mm
Total Stroke 50mm 60mm 70mm 100mm 150mm
Feed Stroke 25mm 25mm 50mm 50mm 50mm
Speed Range(2P) 5000-6680-8340 5000-6680-8340 1600-3200-5000 1600-3200-5000 1800-2600-3300
                      (4P) 2500-3340-4170 2500-3340-4170 830-1670-2500 830-1670-2500 920-1300-1670
Motor 0.5 HP 0.5 HP 1.0 HP 1.0 HP 2.0 HP
Spindle Taper ER16 JT1 ER20  JT6 MT2
Weight 18kgs 22kgs 38kgs 45kgs 62kgs
PDF Drawing Download Download Download Download Download
DWG Drawing Download Download Download Download Download
