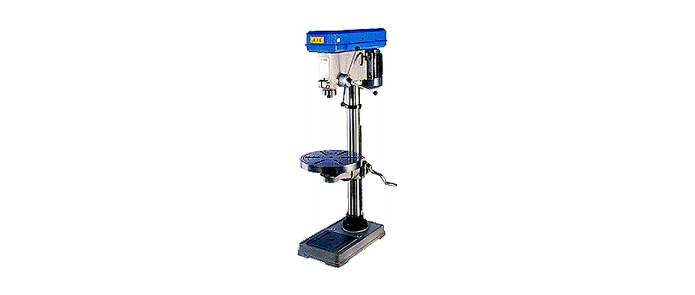

Drilling Machines - Manual Feed
1st Generation - Sutaible for production of 7000 to 12000 components per month.
Features under this category
- Manually operated Machines.
- Highly Versatile & Reliable Machines for production.
- Easy to operate and maintenance free.
- Featured with high accuracy, high rigidity, low noise & wide range of speed change.
- Rigid stream lined construction with reliable & lasting accuracy.
- Machines plug to start type.
- Single point graduated collar depth control system is provided for max operator convenience.
- Ex-stock availability & competitive pricing.
- Spares available on demand.
- Machines also available in Fabricated stand models.
| Manual Feed Drilling Machines | |||||
| Model | LG - 25A | LG - 25B | LG - 16A | LG - 13 | |
| Maximum Drilling Capacity (S45C) | 25mm | 20mm | 16mm | 13mm | |
| Spindle Taper | MT3 | MT3 | MT2 | MT2 | |
| Spindle Travel | 140mm | 120mm | 100mm | 80mm | |
| Number of Speeds | 9 | 9 | 9 | 4 | |
| Spindle Speed | 230-1910 | 230-1910 | 240-2840 | 520-2230 | |
| Throat (Column to Spindle Centre) | 230mm | 230mm | 180mm | 180mm | |
| Column Diameter | 102mm | 92mm | 80mm | 80mm | |
| Table Diameter | 420mm | 400mm | 320mm | 320mm | |
| Base Size | 380 * 600mm | 335 * 580mm | 300 * 500mm | 300 * 500mm | |
| Distance From Spindle To Table | 630mm | 720mm | 450mm | 450mm | |
| Distance From Spindle To Base | 930mm | 920mm | 620mm | 620mm | |
| Motor HP | 2HP | 1.5HP | 1HP | 0.5HP | |
| Overall Height | 1540mm | 1500mm | 1070mm | 1070mm | |
| Weight (net) | 190kg | 140kg | 90kg | 75kg | |
Standard Accessories
- Instruction manual.
- V belts.
- Intermediate table with rack & pinion arrangement for lifting & lowering of work table.
- Main motor of reputed brand, 3 phases, 50 Hz, 4 poles, continues S1 duty.
- On/Off switch duly wired.
Optional Accessories
- Tool Holders
- Coolant system consisting of:- Reservoir tank with chip collection tray, separation baffles, 3 phases coolant pump motor, flexible piping & fittings, on/off valves, splash guards or chip collection tray etc.
- Machine lamp arrangement.
- Square Work Table.
