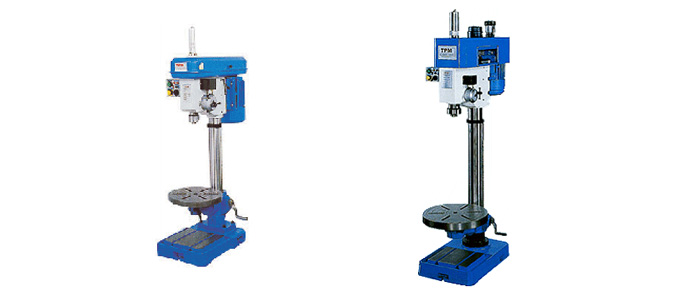

Tapping Machines - Lead Screw Feed
1st Generation - Sutaible for production of up-to 12-15 pcs per minute.
Features under this category
- Automatic tapping is driven by lead screw, which provides standard pitch, accurate threading and consistent quality level of tapping.
- TEFC motors with F class insulation.
- Machines can achieve 20 reversals per minute & hence can achieve max out put up to 10 components per minute.
- Easy replacement of lead screw, to change pitch, which is fitted externally.
- Machines also available in Fabricated Stand Models.
- Machines can be equipped with Multi Spindle Heads for Mass Production.
| Lead-Screw Standard Tapping Machines | ||
| Model | T - 650 | T - 360 |
| Maximum Tapping Capacity (S45C) | M20 | M12 |
| Spindle Taper | MT3 | MT2 |
| Spindle Travel | 120mm | 80mm |
| Spindle Speed | 85-170-250 rpm | 500-830-1250 rpm |
| Throat (Column to spindle center) | 230mm | 180mm |
| Column Diameter | Ø 102mm | Ø 80mm |
| Table Diameter | 420mm | 320mm |
| Base Size | 410 * 600mm | 330 * 510mm |
| Max Distance From Spindle To Table | 630mm | 400mm |
| Distance From Spindle To Base | 930mm | 600mm |
| Motor HP | 2HP | 1HP |
| Overall Height | 1700mm | 1150mm |
| Weight | 220kg | 120kg |
Standard Accessories
- Drill drift.
- Comprehensive electrical control panel with without motor protection device.
- Instruction manual.
- V belts.
- Intermediate table with rack & pinion arrangement for lifting & lowing of work table.
- Main motor of reputed brand, TEFC, F class insulation, 3 Phase, 50 Hz, 6 Pole Induction Motor with all drive elements.
Optional Accessories
- Tool holders
- Coolant system consisting of:- reservoir tank with chip collection tray & separation baffles, coolant pump with 3 phases Induction motor, on / off switches, flexible piping & fitting, on / off valves etc & splash guards or chip collection tray.
- Square work table.
- Jigs & Fixtures.
- Flexible lightly arrangement.
- Spindle motor with protection device and VFD.
