Spindle Head - Drilling
KTK Machines India Pvt. Ltd., Pune offers unique and wide range of S.P.M. modules to S.P.M. manufacturer.
Using KTK make modules gives great comfort for machine builders because of its simple construction specifically for assemblies. This enables machine builder to construct the machine with high speed. The machine can focus his concentration towards other assemblies as such fixtures and component proving.
Features under this category
  • Modular construction for S.P. M. manufacturer
  • Modules are of wide range and has unique feature of interchangeability.
  • Modules are simple in assembly and suitable for wide range of various applications.
  • In both orientation i.e. horizontal OR vertical, the Modules can be mounted easily.
  • The raw material used for modules while manufacturing are of precise quality grade. Because of that, the modules have long life and consistence performance during operations.
  • Modules are tested under strict norms.
  • The complete dimensional drawings in 2D presentation are available.

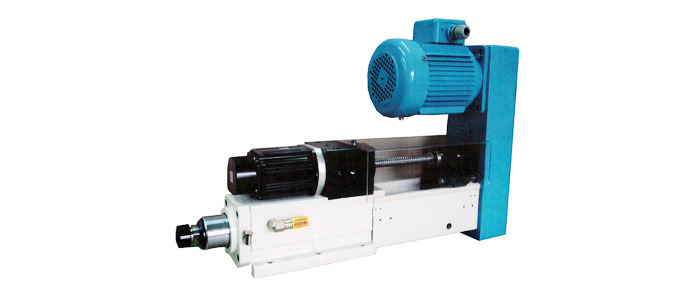

Ball Screw Servo Drilling Spindle Head (Without servo motors)
Model NC-4150 NC-5100 NC-6150 NC-7200 NC-9200
Capacity (S45C) Ø6mm Ø10mm Ø16mm Ø25mm Ø35mm
Spindle Stroke 100mm 100mm 150mm 200mm 130mm
Spindle Taper ER16 ER20 MT2 MT3 MT4
Spindle Speed 2500-3400-4200 830-1670-2500 920-1300-1670 300-1500 (Optional) 250-1250 (Optional)
Spindle Motor 1.0 HP 1.0 HP 2.0 HP 2.0 HP 3.0 HP
Ball Screw  16mmx5.0 20 mm X 5.0 25mmx5.0 32mmx5.0 40 mm X 5
Servo Motor 400W 750W 750W 1KW 1500W
Motor Shaft 14mm 19mm 19mm 24mm 24mm
PDF Drawing Download Download Download Download Download
DWG Drawing Download Download Download Download Download
