Spindle Head - Milling
KTK Machines India Pvt. Ltd., Pune offers unique and wide range of S.P.M. modules to S.P.M. manufacturer.
Using KTK make modules gives great comfort for machine builders because of its simple construction specifically for assemblies. This enables machine builder to construct the machine with high speed. The machine can focus his concentration towards other assemblies as such fixtures and component proving.
Features under this category
  • Modular construction for S.P. M. manufacturer
  • Modules are of wide range and has unique feature of interchangeability.
  • Modules are simple in assembly and suitable for wide range of various applications.
  • In both orientation i.e. horizontal OR vertical, the Modules can be mounted easily.
  • The raw material used for modules while manufacturing are of precise quality grade. Because of that, the modules have long life and consistence performance during operations.
  • Modules are tested under strict norms.
  • The complete dimensional drawings in 2D presentation are available.

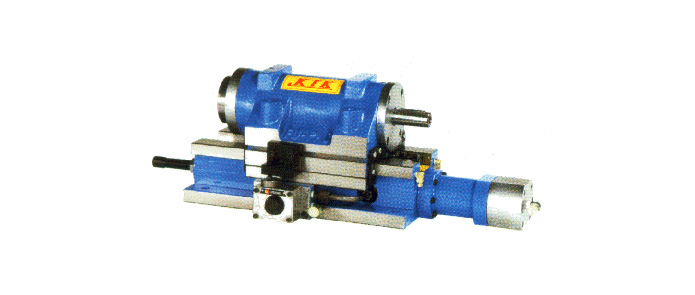

Milling Spindle Head
Model N-70HP N-50HP
Capacity (S45C) Ø40mm Ø30mm
Speed Range (RPM) 2800 3500
Motor 5.0HP 3.0HP
Tool Holder Flange/NT50 Flange/NT40
Spindle Concentricity 0.003mm 0.003mm
Weight 140kg 66kg
Slide Unit Available ST-360-420 ST-220-360
