Home   »   Products
Spindle Head - Tapping
KTK Machines India Pvt. Ltd., Pune offers unique and wide range of S.P.M. modules to S.P.M. manufacturer.
Using KTK make modules gives great comfort for machine builders because of its simple construction specifically for assemblies. This enables machine builder to construct the machine with high speed. The machine can focus his concentration towards other assemblies as such fixtures and component proving.
Features under this category
  • Modular construction for S.P. M. manufacturer
  • Modules are of wide range and has unique feature of interchangeability.
  • Modules are simple in assembly and suitable for wide range of various applications.
  • In both orientation i.e. horizontal OR vertical, the Modules can be mounted easily.
  • The raw material used for modules while manufacturing are of precise quality grade. Because of that, the modules have long life and consistence performance during operations.
  • Modules are tested under strict norms.
  • The complete dimensional drawings in 2D presentation are available.

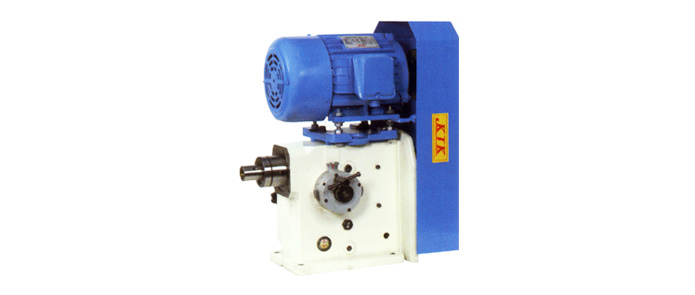

Geared Pitch Tapping Spindle Head
Model GT-50H GT-80H GT-110H
Capacity (S45C) M6 M16 M35
Total Stroke 40mm 60mm 60mm
Tapping Stroke 30mm 50mm 50mm
Speed Range 500-900-1600 200-350-600 100-200-300
Motor 1.0 HP 2.0 HP  3.0 HP
Spindle Taper JT6 MT2 MT4
Weight 55kgs 100kgs 150kgs
PDF Drawing Download Download Download
DWG Drawing Download Download Download
