Drilling Machines - Manual Feed
1st Generation - Sutaible for production of 7000 to 12000 components per month.
Features under this category
- High Speed manually operated Machines.
- Highly versatile and reliable Machines for micro and small hole drilling.
- Easy to operate and maintenance free.
- Feature with high accuracy, Low noise & Dynamically balanced spindle rotation.
- Machines plug to start type.
- Machines also available in fabricated stand models.

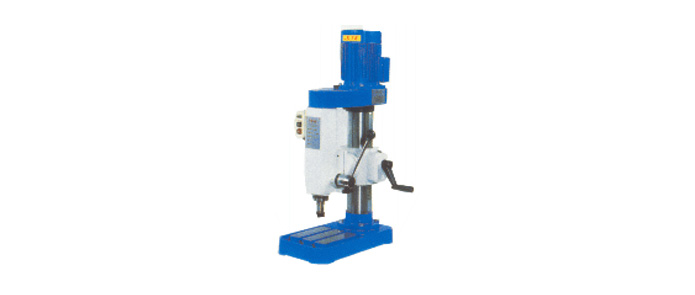

| Sensitive High Speed Manual Drilling Machines | ||
| Model | M-360 | IM-103N |
| Operation | Manual | Manual |
| Maximum Drilling Capacity (S45C) | Ø 6mm | Ø 3mm |
| Spindle Taper | ER-16 | ER-16 |
| Spindle Travel | 60mm | 40mm |
| Motor HP | 0.5HP | 0.25HP |
| Number of Speed | 3 | 5 |
| Maximum Spindle Speed | (2P)5000.7000.8500 rpm (4P)2500.3500.4250 rpm |
(2P)3000.5000.7900.12200.18000 rpm |
| Throat (Column to Spindle Centre) | 150mm | 240mm |
| Table Size | 200 x 200mm | 200 x 200mm |
| Distance From Spindle To Table | 200mm | 150mm |
| Column Diameter | Ø 80mm | Ø 70mm |
| Base Size | 200 x 380mm | 350 x 370mm |
| Overall Height | 730mm | 600mm |
| Weight | 48kg | 38kg |
Standard Accessories
- Instruction manual.
- V belts.
- Main motor of reputed brand, 3 phase, 50 Hz, and ON / OFF switch duly wired.
Optional Accessories
- Tool Holders
- Coolant system consisting of:- Reservoir tank with chip collection tray, separation baffles, electric coolant pump motor, flexible piping & fittings, on/off valves, splash guards etc.
- Machine Lamp Arrangement.
