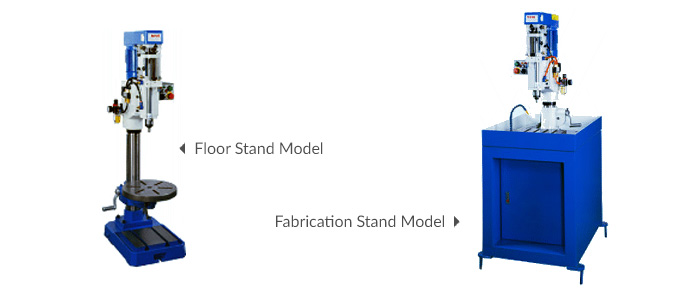

Drilling Machines - Pneumatic Feed
2nd Generation - Sutaible for production of 50000 to 85000 components per month.
Features under this category
- Pneumatic Drilling Machines - For Aluminum or soft material.
- Timer based Wood Pecking Drilling Cycle for deep hole drilling application.
- Machines can also be used for Standard Drilling, Champhering, Reaming, Hole milling, etc operations.
- Machines available in horizontal as well as vertical axis.
- Rigid Construction, Fabricated base Stress relieved and duly scrapped to achieve
desired accuracies as per IS standards. - Spindle is firmly arrested in two combination, P4 Class, preloaded bearings to take max axial thrust & radial loads.
- Drilling cycle (Rapid forward - Feed peck drilling cycle - dwell - rapid return).
- Machines are operated with Programable logic controller (PLC) for maximum operator convenience.
- Spindle drive through timer belts and inter changeable pulley sets.
- Pneumatic spindle feed, infinitely variable within the range.
- Machines can be equiped with variable frequency drive for infinite speeds.
- Inbuilt clamp / decamp cycle for tooling automation.
- Machines can be equipped with Multi-Spindle Heads for mass production.
| Pneumatic Automatic Deep Hole Drilling Machines | |||
| Model | |||
| Maximum Drilling Capacity (S45C) | |||
| Spindle Taper | |||
| Spindle Travel | |||
| Stabilizer Travel (Feed) | |||
| Spindle Speed (4P) | |||
| Spindle Speed (4P) | |||
| Throat | |||
| Table Size | |||
| Column Diameter | |||
| Distance From Spindle To Table | |||
| Motor HP | |||
| Pneumatic Power | |||
| Overall Height | |||
| Weight | |||
Standard Accessories
- Pneumatic Systems duly interfaced with the mother machine.
- Comprehensive electrical control panels/operating, duly wired with the machine.
- Main motor of reputed brand, F Class Insulation, duly assembled on the machine with all drive arrangement.
- Operation and maintenance manual.
- Flexible lighting arrangement.
- Inbuilt job counter & tool change counters.
Optional Accessories
- Tool holders suitable for application.
- Coolant system-complete with necessary splash guards etc.
- Component orientation & clamping fixture as per application.
- Variable frequency Drive for main spindle to achieve infinite speed variation within the range.
- Machine full cladding.
- Centralized lubrication system, if required.
