Spindle Head - Flage Type
KTK Machines India Pvt. Ltd., Pune offers unique and wide range of S.P.M. modules to S.P.M. manufacturer.
Using KTK make modules gives great comfort for machine builders because of its simple construction specifically for assemblies. This enables machine builder to construct the machine with high speed. The machine can focus his concentration towards other assemblies as such fixtures and component proving.
Features under this category
  • Modular construction for S.P. M. manufacturer
  • Modules are of wide range and has unique feature of interchangeability.
  • Modules are simple in assembly and suitable for wide range of various applications.
  • In both orientation i.e. horizontal OR vertical, the Modules can be mounted easily.
  • The raw material used for modules while manufacturing are of precise quality grade. Because of that, the modules have long life and consistence performance during operations.
  • Modules are tested under strict norms.
  • The complete dimensional drawings in 2D presentation are available.

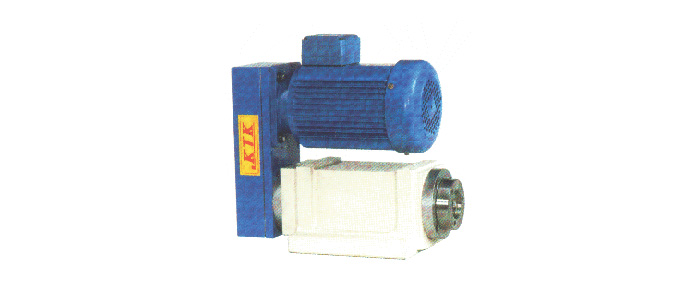

Milling Spindle Head
Model S - 80B S - 60B S - 40B
Capacity (S45C) Ø40mm Ø30mm Ø20mm
Speed Range (H/L) 2200/1200 3000/1500 4000/2000
Motor 5.0HP 3.0HP 2.0HP
Tool Holder Flange/NT40 Flange/NT40 Flange/NT40
Spindle Concentricity 0.005mm 0.005mm 0.005mm
Weight 120kg 71kg 41kg
Slide Unit Available ST-360-500 ST-300-420 ST-200-300
PDF Drawing Download Download Download
DWG Drawing Download Download Download
