Spindle Head - Block Type

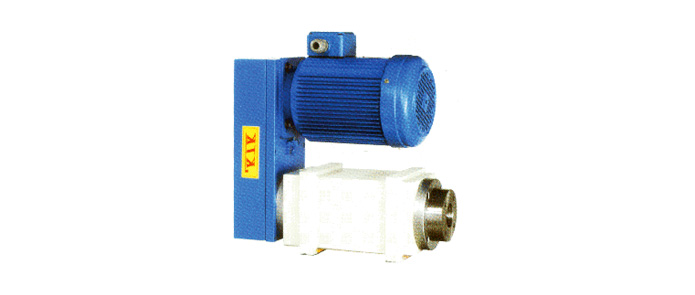

Milling Spindle Head
Model	S - 80A	S - 60A	S - 40A	S - 30A
Capacity (S45C)	Ø40mm	Ø30mm	Ø20mm	Ø8mm
Speed Range (H/L)	2200/1200	3000/1500	4000/2000	6000/3500
Motor	5.0HP	3.0HP	2.0HP	1.0HP
Tool Holder	NT40	NT40	NT40	NT30
Spindle Concentricity	0.005mm	0.005mm	0.005mm	0.005mm
Weight	110kg	62kg	33kg	15kg
Slide Unit Available	ST-360-500	ST-300-420	ST-200-250	ST-120
PDF Drawing	Download	Download	Download	Download
DWG Drawing	Download	Download	Download	Download
