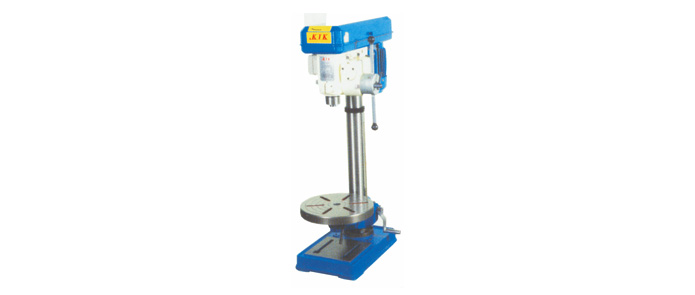

Drilling Machines - Mechanical Feed
1st Generation - Sutaible for production of 15000 to 30000 components per month.
Features under this category
- Mechanical Auto feed Drilling Machines.
- The Automatic Feed drilling operation is driven by hollow clutch gear mechanism.
- Oil deep gear drive arrangement for long lasting life of gears.
- Single Point graduated collar depth control system is provided for maximum operator
convenience. - Automatic feed drilling performance with Auto disengagement of feed after reaching depth
& return back to the home position. - Inbuilt feed drive safety clutch arrangement to prevent accidental damage.
- Set able Multi feeds provided on the Machines by change of belts.
- Machines also available in Fabricated Stand Models.
- Machines can be equiped with Multi spindle Heads for Mass Production.
| Gear Transmission Autofeed Drilling Machines | ||
| Model | LG - 250 | LG - 120 |
| Maximum Drilling Capacity (S45C) | Ø 25mm | Ø 16mm |
| Spindle Taper | MT3 | MT2 |
| Spindle Travel | 140mm | 80mm |
| Number Of Speeds | 6 | 4 |
| Spindle Speed | 250-2020 rpm | 470-1730 rpm |
| Throat (Column to Spindle Centre) | 230mm | 180mm |
| Column Diameter | Ø 102mm | Ø 80mm |
| Table Diameter | 420mm | 320mm |
| Base Size | 380 * 600mm | 300 * 500mm |
| Max Distance From Spindle To Table | 630mm | 400mm |
| Distance From Spindle To Base | 930mm | 600mm |
| Motor HP | 2HP | 1HP |
| Overall Height | 1600mm | 1050mm |
| Weight | 220kg | 100kg |
Standard Accessories
- Drill drift.
- Instruction manual.
- V belts
- Intermediate table with rack & pinion arrangement for lifting & lowering of work table
- Main motor of reputed brand, 3 phase, 50 Hz, 4 pole, continues duty.
- On/Off switch duly wired.
Optional Accessories
- Tool holders
- Coolant system consisting of: - reservoir tank with chip collection tray separation baffles, electric coolant motor, on / off switches, flexible piping & fitting, on / off valves etc. Splash guards etc.
- Square work table.
- Jigs & Fixtures.
- Flexible lightly Arrangement.
