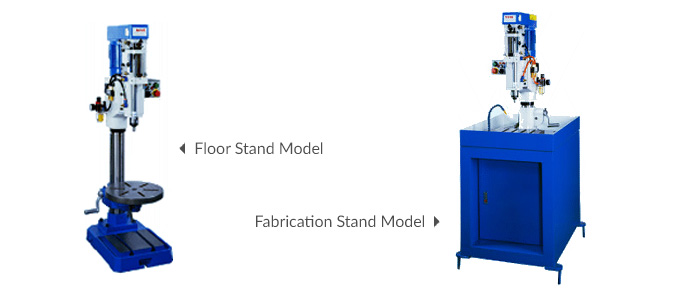

Drilling Machines - Pneumatic
2nd Generation - Sutaible for production of 50000 to 85000 components per month.
Features under this category
- Pneumatic Drilling Machines - Suitable for Aluminum or soft material.
- Recommended operations : Drilling, Chamfering, Reaming, Hole Milling, Spot Facing, Countersinking.
- Rigid Construction, Fabricated base Stress relieved and duly scrapped to achieve desired accuracies as per IS standards.
- Spindle is firmly arrested in two P4 Class, preloaded bearings combinations, to take max axial thrust & radial loads.
- Drilling cycle (Rapid forward-feed-dwell-rapid return)
- Spindle drive through timer belts and inter changeable pulley sets.
- Pneumatic spindle feed, infinitely variable within the range.
- Inbuilt clamp / decamp cycle for tooling automation.
- Machines can be equipped with Multi-Spindle Heads for mass production.
| Pneumatic Automatic Drilling Machines | |||||
| Model | P-6150 | P-5100 | P-570 | P-360 | P-350 |
| Max Drilling Capacity (S45C) | Ø 15mm | Ø 10mm | Ø 10mm | Ø 6mm | Ø 5mm |
| Spindle Taper | MT2 | JT6 | ER20 | JT2 | ER16 |
| Spindle Travel | 150mm | 100mm | 70mm | 60mm | 50mm |
| Stabilizer Travel | 50/75/100 mm | 50mm | 50mm | 25mm | 25mm |
| Spindle Speed (4p) | 920-1250-1670rpm | 830-1670-2500rpm | 830-1670-2500rpm | 2500-3400-4200rpm | 2500-3400-4200rpm |
| Spindle Speed (2p) | 1800-2500-3340rpm | 1660-3340-5000rpm | 1660-3340-5000rpm | 5000-6800-8400rpm | 5000-6800-8400rpm |
| Throat | 230mm | 180mm | 180mm | 180mm | 180mm |
| Table Size | Ø 420mm | Ø 320mm | Ø 320mm | Ø 320mm | Ø 320mm |
| Column Diameter | Ø 102mm | Ø 80mm | Ø 80mm | Ø 80mm | Ø 80mm |
| Distance From Spindle To Table | 100-700mm | 100-400mm | 100-400mm | 100-400mm | 100-400mm |
| Motor HP | 2HP | 1HP | 1HP | 0.5HP | 0.5HP |
| Pneumatic Power | 5-7 kg/sq.cm | 5-7 kg/sq.cm | 5-7 kg/sq.cm | 5-7 kg/sq.cm | 5-7kg/sq.cm |
| Overall Height | 1500mm | 1350mm | 1350mm | 1350mm | 1350mm |
| Weight (Approx) | 200kg | 100kg | 100kg | 100kg | 100kg |
Standard Accessories
- Pneumatic Systems duly interfaced with the mother machine.
- Comprehensive electrical control panels/operating pendant, duly wired with the machine.
- Main motor of reputed brand, F Class Insulation, duly assembled on the machine with all drive arrangement.
- Operation and maintenance manual.
- Flexible lighting arrangement.
- Inbuilt job counter & tool change counters.
Optional Accessories
- Spindle taper
- Inbuilt clamp / decamp cycle
- Tool holders suitable for application.
- Coolant system-complete with necessary splash guards etc.
- Component orientation & clamping fixture as per application.
- Variable frequency Drive for spindle motor for speed variation within the range.
- Machine cladding.
